適合誰
- 想追蹤開源電子紙 PDA
- 口袋型打字機
- ESP32-S3 開發硬體
- 實體 QWERTY 與可側載自製應用的人。
Talisman DesignCrowd Supply 海外預購，預計 2027-03 出貨；未見台灣正式代理、零售或在地保固。
PocketMage PDA
PocketMage PDA 是 Talisman Design 的開源電子紙 PDA／口袋型打字與開發裝置，官方 Crowd Supply 頁面列 ESP32-S3、3.1 吋 320×240 e-paper 主螢幕、1.8 吋 256×32 OLED 副螢幕、實體 QWERTY 鍵盤、電容式捲動條、microSD、USB-C、Wi-Fi/Bluetooth、SPI/UART/GPIO 擴充與 1200mAh 電池。它是群眾集資／預購中的自訂 FreeRTOS 系統裝置，不是一般現貨電子書閱讀器；RAM 規格因 Crowd Supply 與 GitHub README 說法不同而保留來源差異。
- 螢幕 · 3.1" + 1.8" OLED · 黑白
- 實體翻頁鍵 · 不支援
- 手寫 · 不支援
- 儲存空間 · 0.015625 GB
目前沒有可確認的近期價格保留購買入口，請至通路確認售價與庫存。
部分購買連結為分潤連結，透過連結購買不會改變你付的價格。
適不適合你
不適合誰
- 需要一般 Android 電子書閱讀器
- Google Play
- GSF
- 台灣正式保固
- 現貨通路
- 彩色螢幕
- 手寫筆記或已確認量產交期的人。
優點
- 開源硬體/軟體
- 雙螢幕架構
- 實體 QWERTY
- microSD
- USB-C
- Wi-Fi/Bluetooth
- 擴充腳位與官方約 7 天續航估計。
缺點
- 目前為 Crowd Supply 集資/預購
- 不是一般零售現貨，且 RAM 規格在一手來源間存在 2MB quad-SPI SRAM 與 8MB RAM 的差異，需保留來源脈絡。
完整規格
顯示
- 螢幕尺寸
- 3.1" + 1.8" OLED
- 顯示技術
- E Ink + OLED
- 面板
- 3.1" 320×240 e-paper main panel + 1.8" 256×32 OLED secondary display
- 解析度
- 320 x 240
- 彩色顯示
- 不支援
效能
- Android 版本
- 不適用（開源 FreeRTOS 專用系統）
- Google Play 商店
- 沒有
- Play 商店備註
- PocketMage runs a custom FreeRTOS-based OS / C++ firmware, not Android; no Google Play or GSF activation is claimed.
- 處理器
- ESP32-S3
- RAM
- 0.002 GB
- 儲存空間
- 0.016 GB
- 記憶卡擴充
- Crowd Supply lists a MicroSD card slot; the GitHub README lists MicroSD support up to 2TB. RAM is intentionally left null because first-party sources disagree between 2MB quad-SPI SRAM and 8MB RAM wording.
連線與輸入
- Wi-Fi
- ESP32-S3 Wi-Fi
- 藍牙
- 支援
- 行動網路
- 不支援
- 行動網路備註
- First-party sources list Wi-Fi/Bluetooth but do not list cellular or SIM support.
- 實體翻頁鍵
- 不支援
- 手寫
- 不支援
- 喇叭
- 不支援
- 相機
- 不支援
機身
- 重量
- 規格未公布
- 電池容量
- 1,200 mAh
- 發表／上市年月
- 2026-07
手寫筆與翻頁配件
使用與實測補充
使用建議
若只是想看書，先確認 PocketMage 的閱讀 app 成熟度；若想開發，優先閱讀官方 GitHub、文件與第三方 app template，並把 Crowd Supply 交期視為集資估計而非現貨保證。
疑難排解
本批不建立台灣/HK 通路、保固、售價或圖片推廣；到貨後建議依官方文件檢查 e-paper、OLED、鍵盤、touch bar、microSD、USB-C、RTC、蜂鳴器與擴充腳位。
Reader Correction
發現規格或價格有錯？
這份回報會連同 Talisman Design PocketMage PDA 的機型識別送進控制中心，由編輯人工核對後處理；未確認的內容不會直接公開。
規格與 PPI官方／通路價格庫存與停產商品連結機型圖片
資料來源與品質
100%資料完整度25 筆來源售後風險：高多半需跨境或非在地流程，維修時程、物流風險與成本通常較高。建議售價 US$260建議售價；非近期追價觀測
| 欄位 | 內容 | 來源類型 | 信心度 | 連結 |
|---|---|---|---|---|
| product_identity | PocketMage — a distraction-free, e-paper personal digital assistant by Talisman Design | official_store | 99% | 查看 |
| official_site | PocketMage official site describes a dual-screen productivity PDA with E Ink, OLED, full keyboard, MicroSD, buzzer, RTC, touch slider, open-source files and side-loading apps. | official_site | 95% | 查看 |
| official_repository | GitHub README identifies PocketMage PDA as an E-Ink PDA powered by ESP32-S3 with custom OS source under Apache-2.0. | official_site | 95% | 查看 |
| all_specs | ESP32-S3 / 16MB Flash / 3.1" 320x240 e-paper / 1.8" 256x32 OLED / tactile QWERTY keyboard / capacitive scroll bar / MicroSD / piezo buzzer / RTC / 1200mAh / USB-C / I2C-SPI-UART-GPIO expansion | official_store | 95% | 查看 |
| display | 3.1-inch 320x240 e-paper main panel plus 1.8-inch 256x32 OLED secondary display | official_store | 95% | 查看 |
| processor | ESP32-S3 microcontroller with Wi-Fi and Bluetooth | official_store | 95% | 查看 |
| memory_discrepancy | Crowd Supply lists 2MB quad-SPI SRAM; GitHub README lists ESP32-S3 WROOM1 with 16mb flash and 8mb RAM. RWP preserves the conflict and keeps ram_gb null. | official_store | 90% | 查看 |
| memory_discrepancy_github | GitHub README says ESP32-S3 WROOM1 with 16mb flash and 8mb RAM; this conflicts with Crowd Supply's 2MB quad-SPI SRAM line. | official_site | 90% | 查看 |
| micro_sd_support | true; Crowd Supply lists MicroSD card slot and GitHub README lists support up to 2TB | official_site | 90% | 查看 |
| connectivity | ESP32-S3 Wi-Fi and Bluetooth; no cellular or SIM support listed | official_store | 95% | 查看 |
| hardware_expansion | Expansion port with power, I2C, SPI, UART, and GPIO | official_store | 95% | 查看 |
| battery_capacity_mah | 1200mAh LiPo with integrated charging and battery management | official_store | 95% | 查看 |
| battery_life_claim | official comparison table estimates 7 days battery life | official_store | 90% | 查看 |
| operating_system | custom open-source OS based on FreeRTOS; not Android | official_store | 95% | 查看 |
| app_sideload | official site says PocketMage allows side-loading apps and provides app templates on GitHub | official_site | 90% | 查看 |
| license | Apache-2.0 open-source hardware/software repository license | official_site | 90% | 查看 |
| campaign_status | Crowd Supply crowdfunding campaign; funding ends Aug 20 2026; orders placed now ship Mar 25 2027; not ordinary in-stock retail | official_store | 95% | 查看 |
| campaign_tiers | Kit Parchment/Royal Purple US$185; Pre-Assembled Parchment/Royal Purple US$235; Free US Shipping / US$12 Worldwide | official_store | 95% | 查看 |
| device_category | other | official_store | 99% | 查看 |
| reading_role | incidental | official_store | 99% | 查看 |
| device_capability | general_apps | official_store | 99% | 查看 |
| device_classification_reviewed_at | 2026-07-24 | official_store | 99% | 查看 |

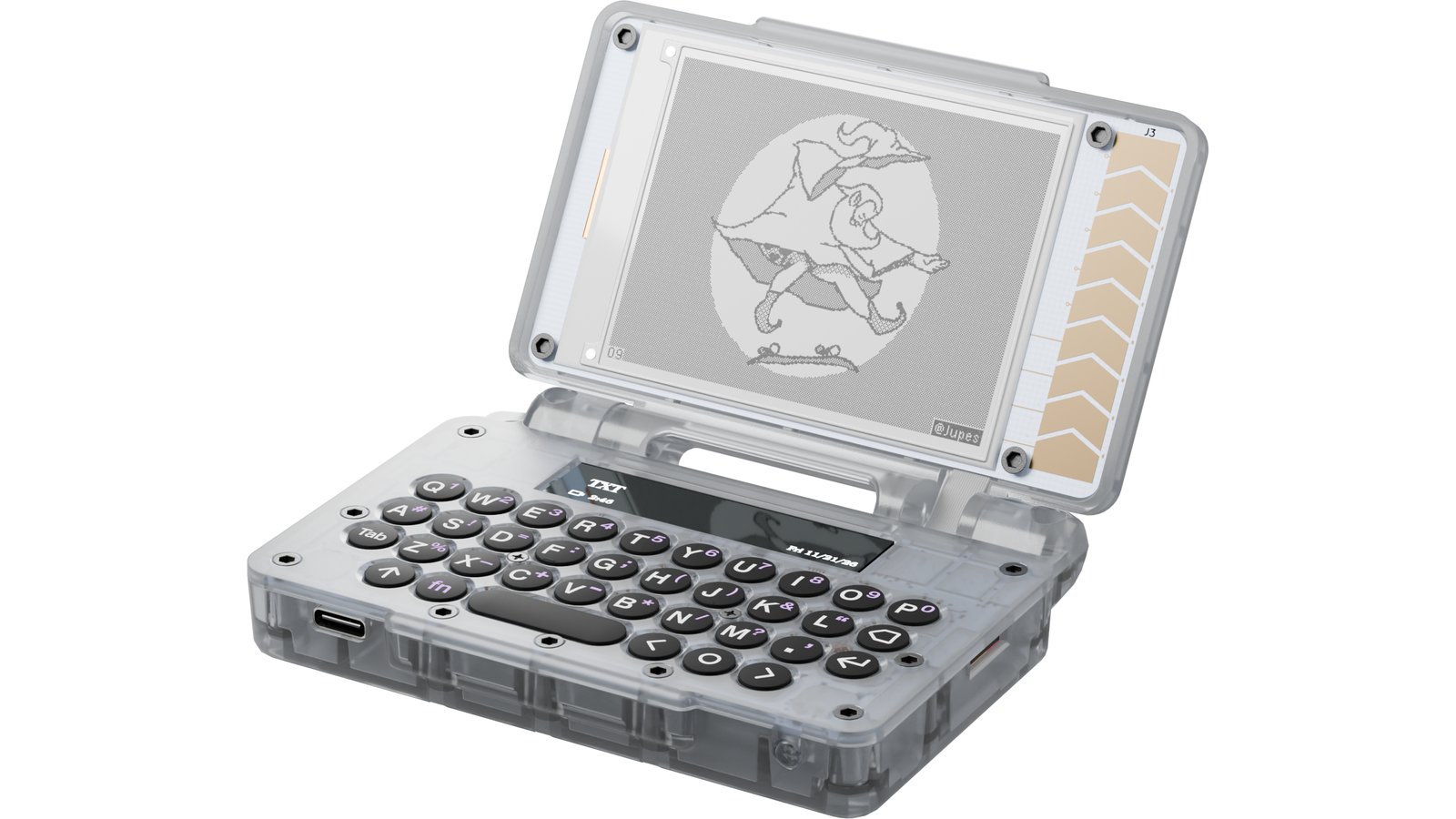

| media_items | Crowd Supply's Talisman Design campaign identifies this exact image as PocketMage Pre-Assembled (Parchment); unmodified local JPEG at /images/devices/pocketmage-eink-pda/media-1.jpg, direct asset https://www.crowdsupply.com/img/b70e/c69c13cc-0a71-4695-a290-cbbf2de2b70e_md-fixed-xl.jpg, SHA256 535FB402E628A60C1EA14A380B4B1740D061B5EC770FBAD8BB53963949E9443E, 140692 bytes, 1600 x 900. | official_store | 99% | 查看 |
| active_brand_c2_exact_model_authority | Exact-model evidence closes only the published facts and operating boundary; unpublished values stay explicitly unknown and no sibling or fake Taiwan price is used. | owner_campaign | 99% | 查看 |
| unknown_weight | unknown_not_published: reviewed exact-model authority; weight remains unknown and must not be inferred | owner_campaign | 99% | 查看 |
最後更新：2026/8/25
